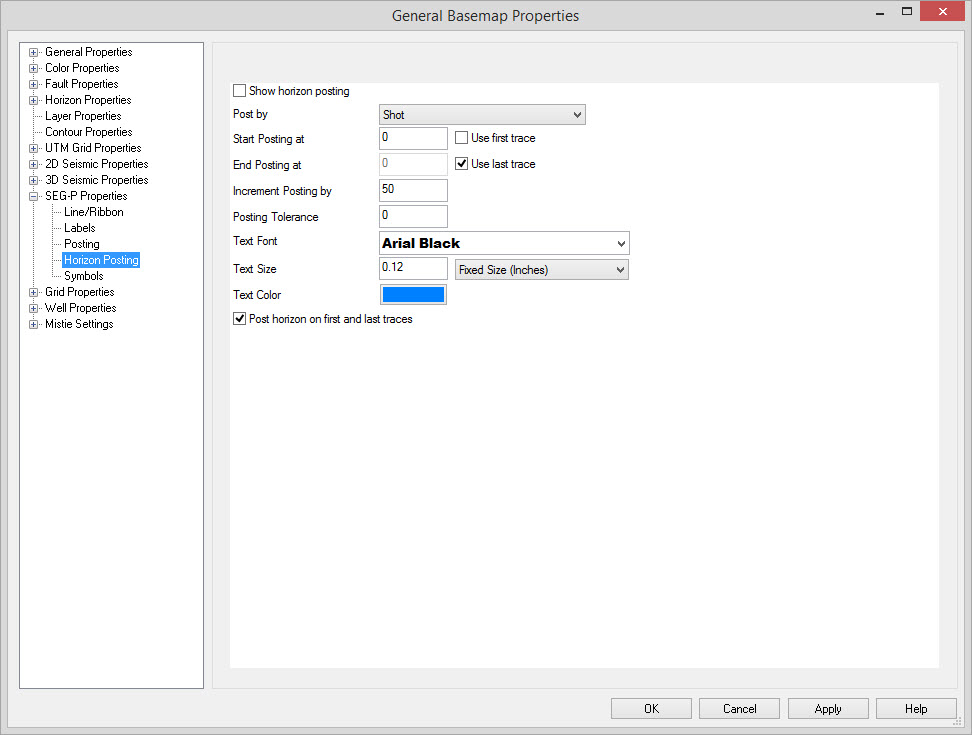

SEG-P Properties: Horizon Posting
For any horizon ribbon posted on a SEG-P line, you can display the
values along the line. Use these settings to configure the horizon
posting labels. To define number of decimals used in the horizon
postings see the Colorbar/Histogram page.
Enable Posting
Show Horizon Posting: Toggle to defined
posting for horizons on SEG-P seismic lines.
Posting Parameters
Post By: Select
how the horizon is posted on
SEG-P seismic lines. Shot, CDP, and trace offset are the
available selections.
Start Posting At, End Posting At, Increment Posting By: The starting, ending, and increment posting values. The value entered here should be appropriate to the selection in "Post By". Generally, using the first and last trace for posting is the best application for all lines. If using line-by-line properties, you can have values specific to that line.
Posting Tolerance: The allowed variance from the specified post by value where values will still post. For example, if the posting was set up to have values at shot 100 and the nearest shot is 100.05, the posting will still appear if the posting tolerance is more than .05.
Text Font, Text Size, Text Color: These define how the posting will appear. Select the font, specify the size, and select a color.
Post Horizon On First And Last Traces: This always posts the values present on the first and last traces of the line.
Start Posting At, End Posting At, Increment Posting By: The starting, ending, and increment posting values. The value entered here should be appropriate to the selection in "Post By". Generally, using the first and last trace for posting is the best application for all lines. If using line-by-line properties, you can have values specific to that line.
Posting Tolerance: The allowed variance from the specified post by value where values will still post. For example, if the posting was set up to have values at shot 100 and the nearest shot is 100.05, the posting will still appear if the posting tolerance is more than .05.
Text Font, Text Size, Text Color: These define how the posting will appear. Select the font, specify the size, and select a color.
Post Horizon On First And Last Traces: This always posts the values present on the first and last traces of the line.
Note: Fixed sized objects will remain the same regardless of the map scale. Variable sized objects will change size with the map scale.
